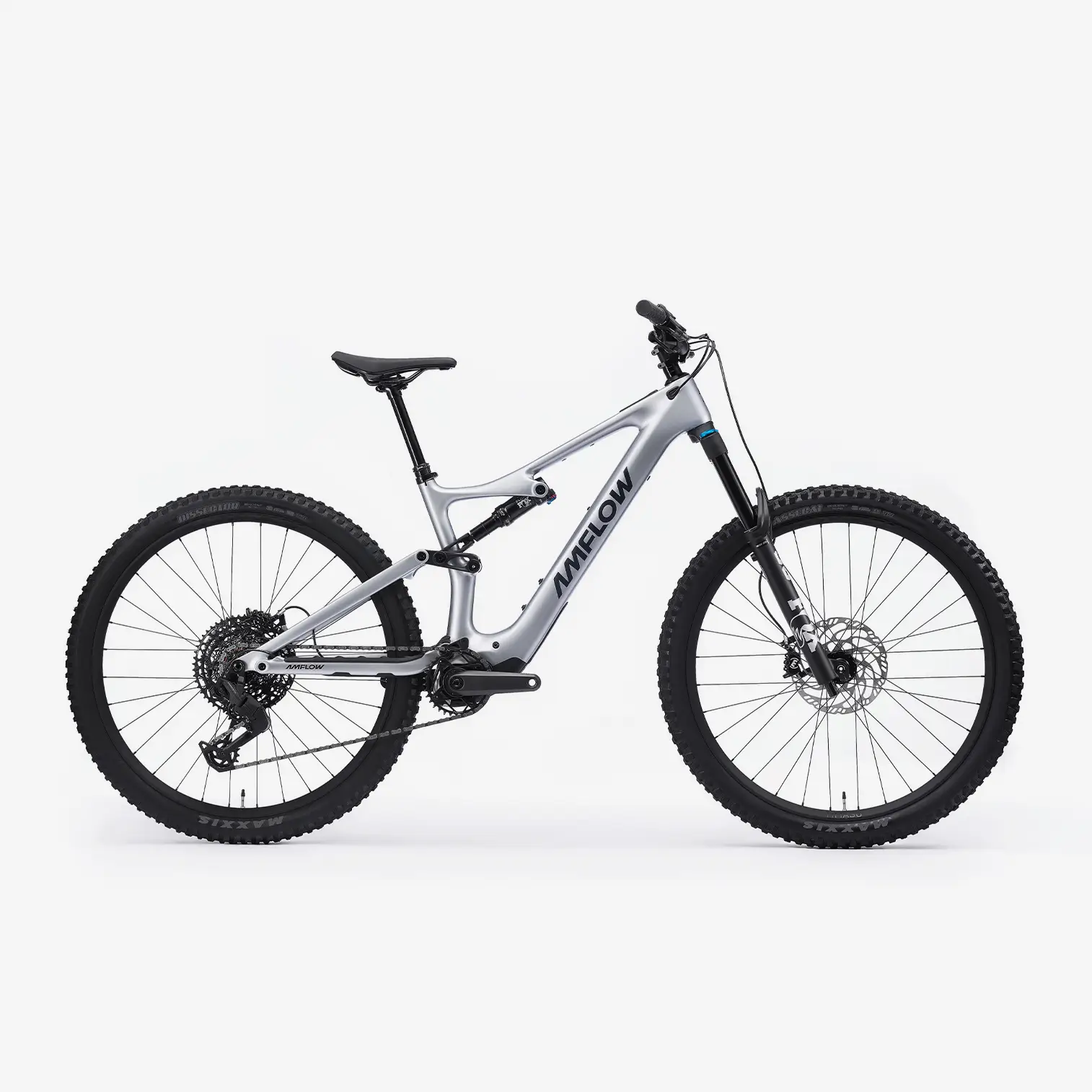

AMFLOW PL CARBON E-MTB

AMFLOW PL CARBON E MTB

Lightweight Build. Smart Power. Trail Dominating Performance.

Designed for riders who want the perfect balance of power, range, and lightweight handling, the Amflow PL Carbon is a next-generation electric mountain bike built to perform across all terrain. Featuring a high-end carbon frame and the advanced Avinox drive system, it delivers smooth, intelligent assistance with a natural ride feel.

With 850W of peak power, up to 120Nm of torque in Boost mode, and a total weight of just 19.2kg, the PL Carbon climbs efficiently, descends confidently, and rides like a true high-performance trail bike.

Key Specifications

Motor:
Avinox M1 mid-drive electric motor

Power:
850W peak (up to 1000W in Boost mode)

Torque:
105Nm (up to 120Nm Boost mode)

Battery:
800Wh integrated lithium-ion battery

Range:
Up to 157 km (rider dependent)

Charge Time:
Approx. 1.5 hours (0–75% with fast charger)

Weight:
19.2 kg

Frame:
Amflow PL Carbon (Satin Silver)
150mm rear travel
Compatible with 27.5” and 29” rear wheels

Suspension

Front Fork:
2026 FOX 36 Performance
160mm travel
GRIP damper

Rear Shock:
2026 FOX Float Performance
Trunnion mount (185×55mm)
EVOL air sleeve
2-position lever

Drivetrain

Rear Derailleur: SRAM Eagle 70 Transmission
Shifter: SRAM Eagle 70 (single click)
Cassette: SRAM XS-1270 Eagle 10–52T
Chain: SRAM Eagle Transmission Flattop
Chainring: SRAM Eagle E-MTB 34T
Crankset: Avinox SL (155–160mm depending on size)

Brakes

Magura MT5 hydraulic disc brakes
4-piston calipers
203mm rotors (front and rear)

Wheels & Tyres

Wheels:
Amflow HMA-30 alloy rims
29” / 30mm internal width
Tubeless ready

Hubs:
Front: 15×110mm thru-axle
Rear: 148×12mm thru-axle

Tyres:
Front: Maxxis Assegai 29×2.5”
Rear: Maxxis Dissector 29×2.4”

Cockpit

Handlebar: Amflow Enduro Alloy (800mm, 35mm rise)
Stem: Amflow CNC (35mm)
Grips: Amflow Enduro
Saddle: Selle Royal SRX Plus
Seatpost: KS Rage-i dropper (150–190mm depending on size)

Dimensions & Weight

Weight: 19.2 kg
Wheelbase: 1360 mm
Seat Height: Approx. 900 mm
Ground Clearance: 300 mm
Max Rider Weight: 120 kg

Smart Features

Eco / Trail / Turbo ride modes
Auto Mode (adaptive terrain-based assistance)
Boost Mode (up to 120Nm / 1000W)
Intelligent walk assist with hill start
Integrated 2” OLED display with real-time data

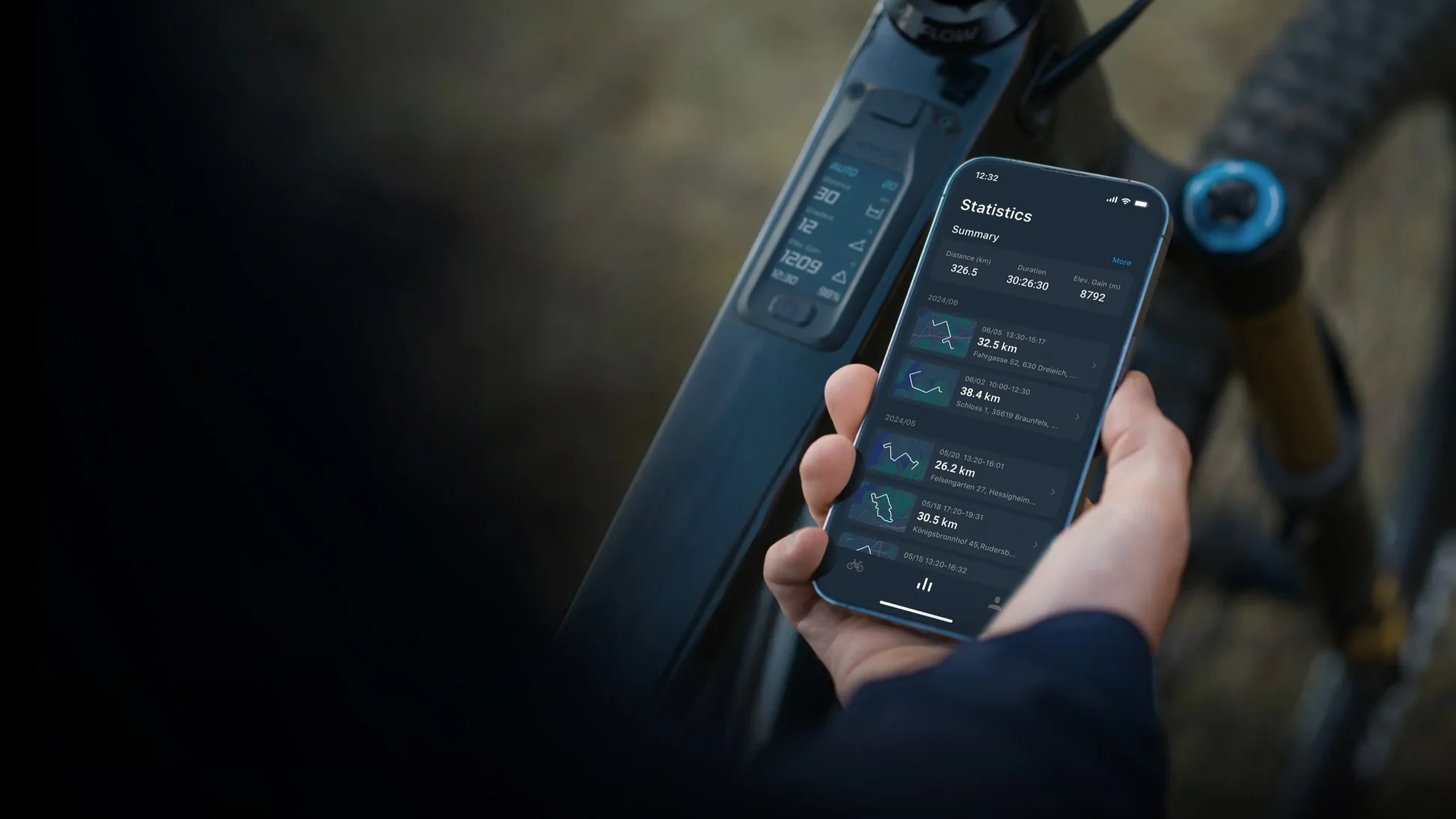

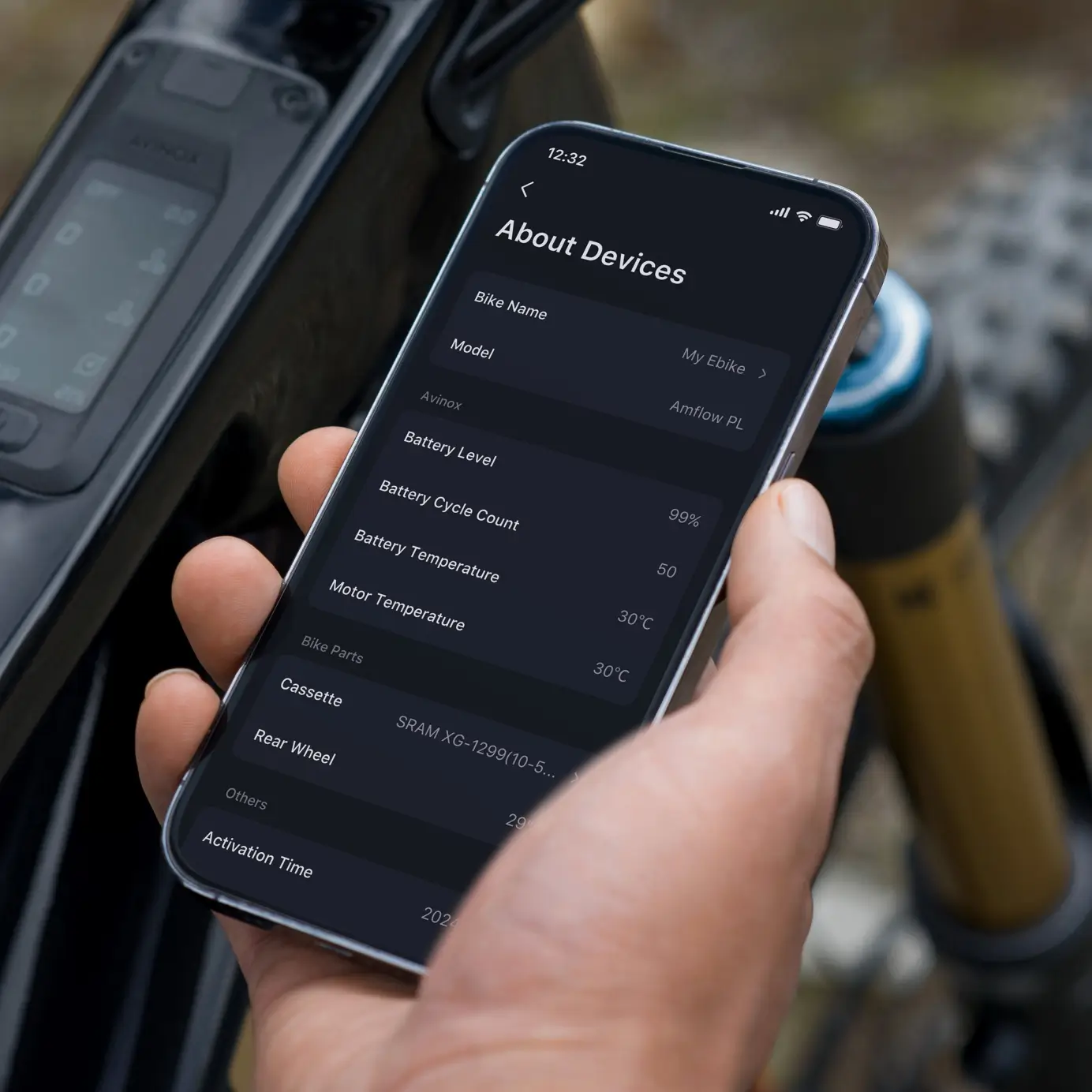

App connectivity with ride tracking & Strava sync
Battery health management system
Quiet gearbox with advanced noise reduction

Warranty

12-month warranty through E Cycles

Delivery Information

Nationwide shipping across New Zealand

Estimated delivery timeframe: 30 days

Shipping times may vary depending on freight and customs conditions
